Bush Beast Construction

The Bush Beast was a “Double out & back figure 8” configuration, a direct clone of Paramount Canada’s Wonderland’s Wild Beast built in 1981. The Wild Beast was still running at Canada’s Wonderland, near Toronto, years after the Bush Beast was demolished, and former Wonderland staff who rode it found it identical and about as rough as the Bush Beast had been. The same park has the Beastie‘s twin, the Ghoster Coaster, and the larger Mighty Canadian Minebuster, which they called the big brother of both. The Bush Beast was also modelled on the Wildcat at Coney Island in Cincinnati, Ohio.

Bush Beast Construction (16)

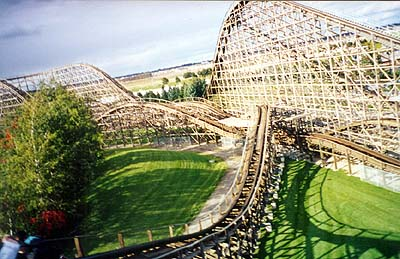

Paramount Canada’s Wonderland’s Wild Beast

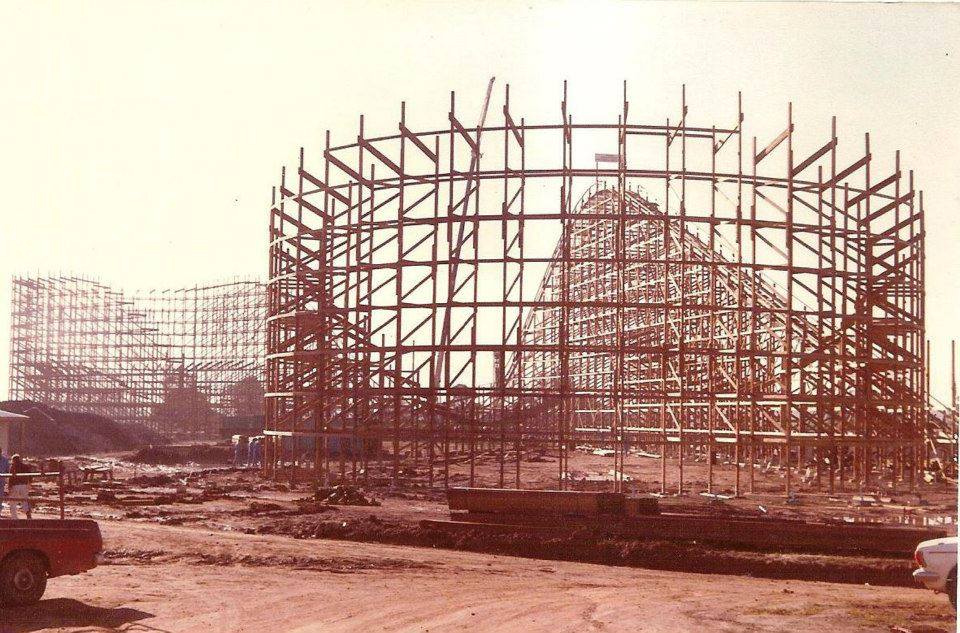

The Bush Beast was prefabricated on site and assembled like a giant construction kit out of 450,000 board feet of imported Southern Yellow Pine and held together with over 30,000 steel bolts and 9,072 Kg of nails.

The Bush Beast‘s construction started on the 1st of April 1985 and was completed on the 5th of November 1985, seven months later, at a cost of $2,780,000.

The Bush Beast was built to last 40 years.

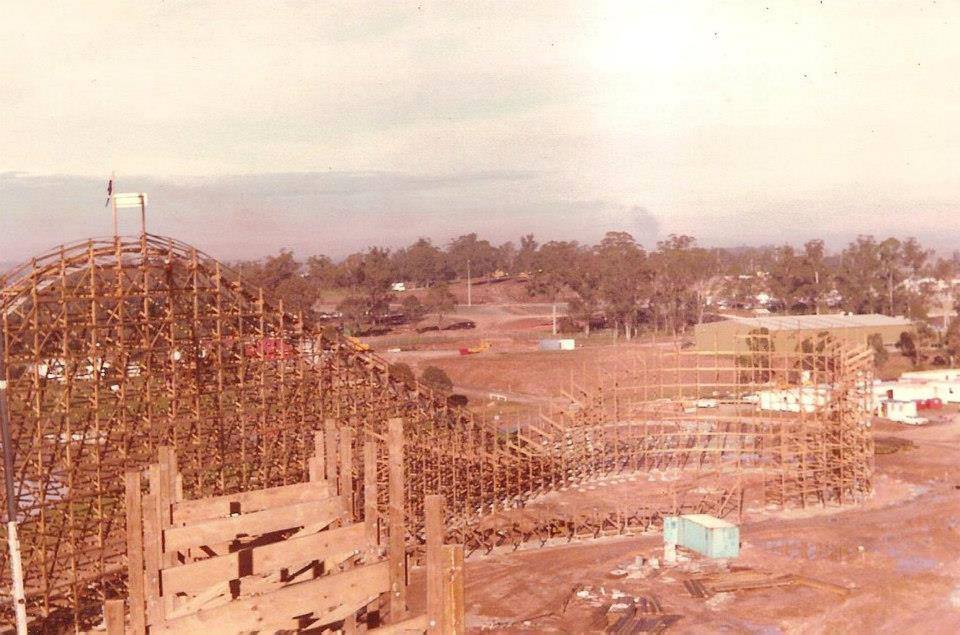

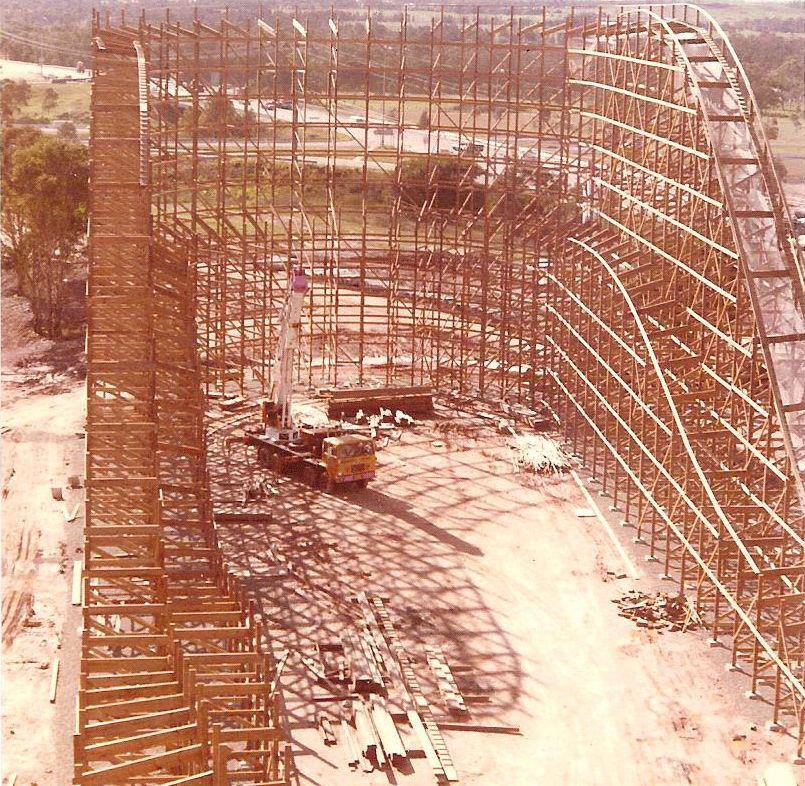

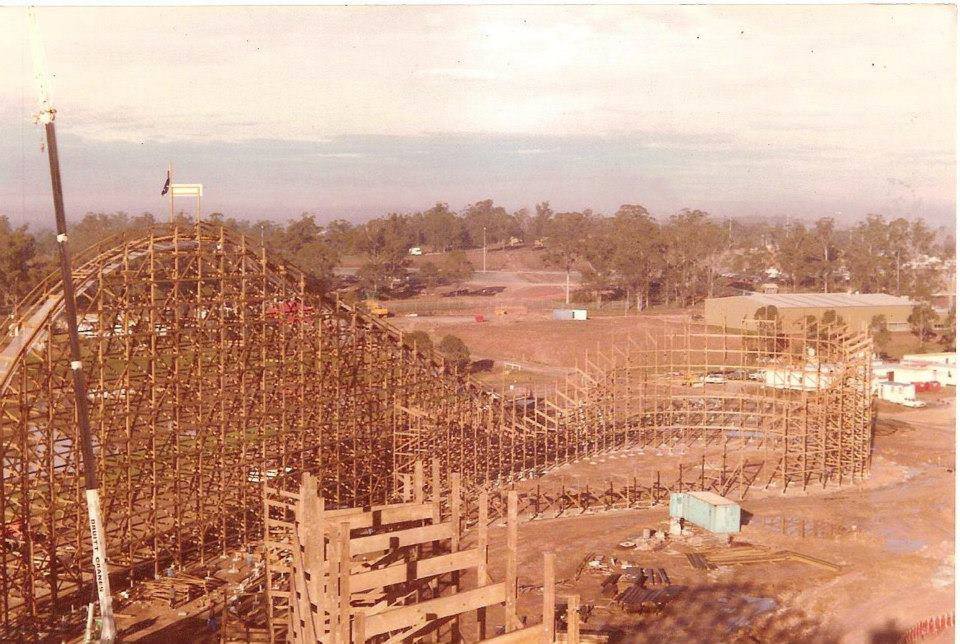

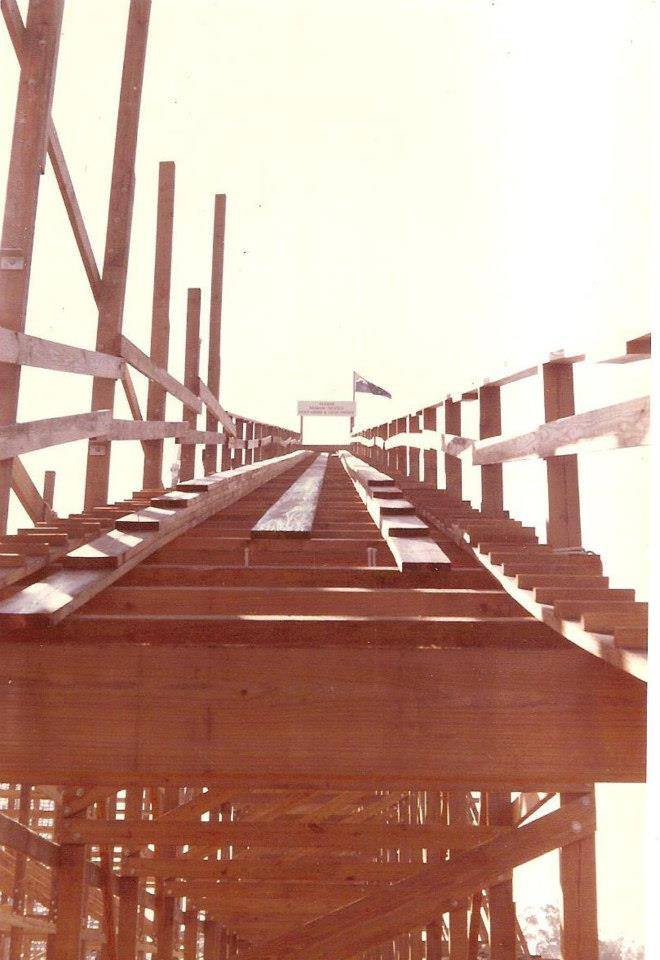

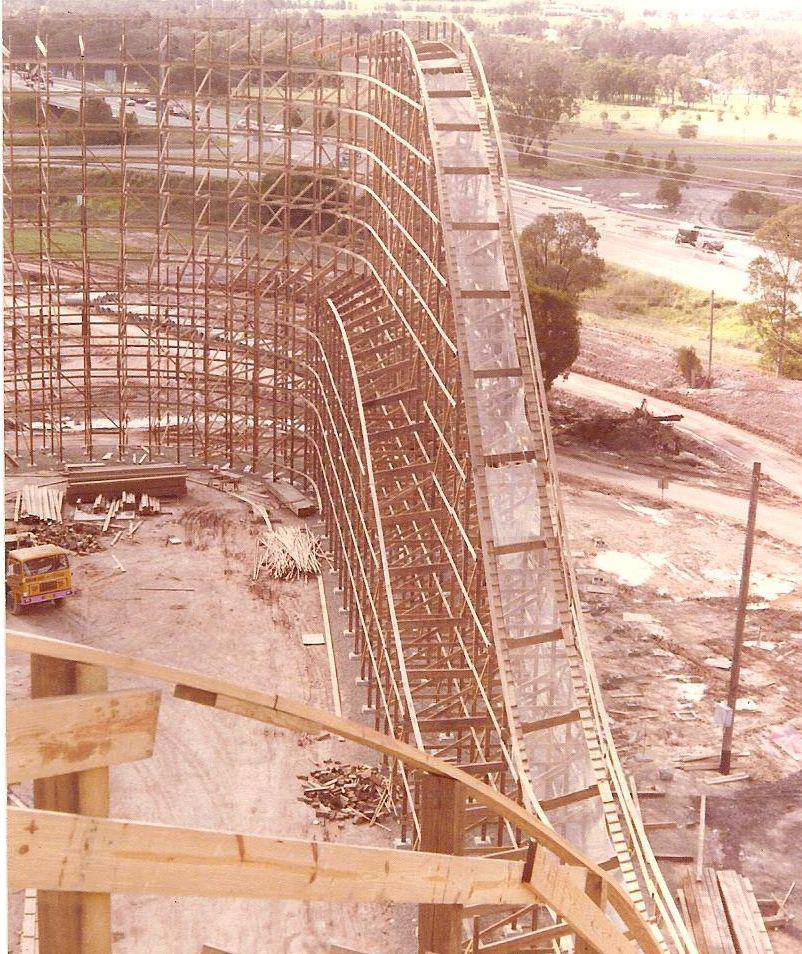

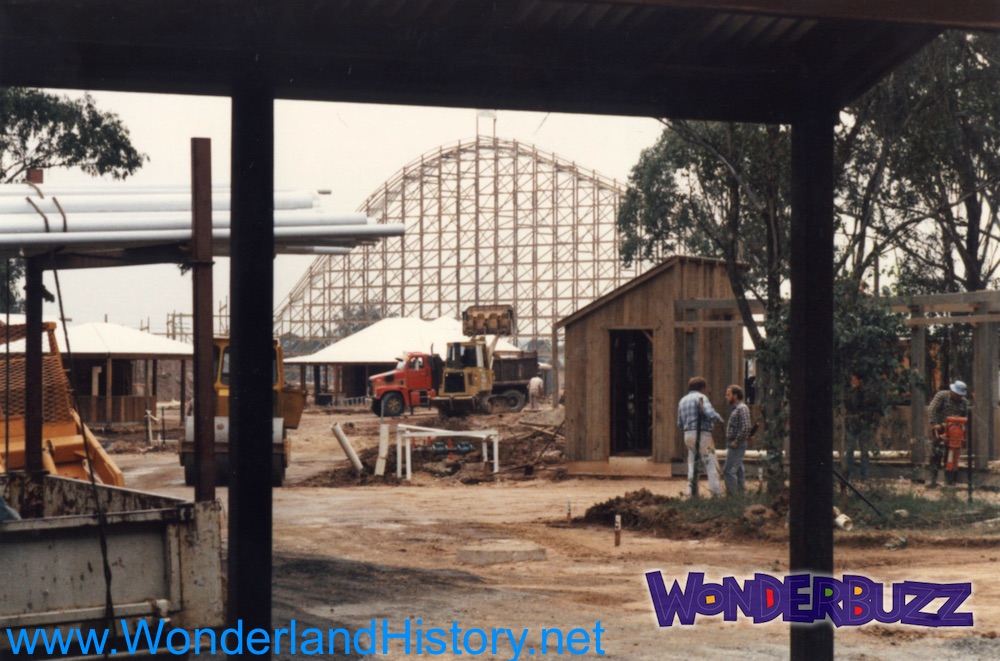

You can see what is meant by “assembled like a giant construction kit” in the photos below. The two photographs of the first lift hill and main drop components were taken on 30 April 1985, only a few hours apart.

The Bush Beast used fin type braking pioneered by Taft, and it was computerised: a programmable controller, a Westinghouse PC700 PLC, controlled everything on the ride and would shut it down if there was any fault. More on how the ride was run is on the Behind the Scenes page, and the park’s figures are on the Facts Sheet page.

Construction started
1 April 1985
First lift hill component placed
30 April 1985
Construction completed
Tuesday 5 November 1985
Construction time
Seven months
Commissioning
A little over four weeks before the park opened on 7 December 1985
Timber
450,000 board feet of imported Southern Yellow Pine (about 1,062 cubic metres)
Bolts
Over 30,000 steel bolts
Nails
20,000 lb (about 9,072 kilograms)
Steel track
2½ miles (4 kilometres)
Cost
$2,780,000
Designed to last
40 years

Construction workers signed their name in 2 locations on the Bush Beast.

The first location was on the side of the floor just underneath the original top landing for the exit ramp, which was later converted into the Control Booth when the Bush Beast went to 1 person operation. This was dated 4 November 1985 and was accompanied with the name Mark Dearing. You could notice it as you walked down under this landing and looked back.

The second location was on the side of a horizontal brace which supported the maintenance platform that serviced brakes 1 to 4 under the station, this was dated 5 November 1985.

Tuesday the 5th of November 1985 was the last day of construction. This gave a little over 4 weeks to commission the ride and add final touches to the theming of the Bush Beast before the park opened.
